100V OEM ODM Waterproof Sound Column Speaker 20W Aluminum Material

Model Number:	COL-562

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Warranty:

3years

Dimension:

520*227*125

Power Source:

Other

Output Power:

Shell Material:

Aluminium

The Body Material:

Metal

Frequency Response:

140-15KHZ

Magnet Material:

Ferrite

Highlight:

Waterproof Sound Column Speaker

Sound Column Speaker 20W

20W Aluminum Column PA Speaker

Product Description

IP44 Outdoor Waterproof Sound Column Speaker 20W Aluminum PA Column Speaker

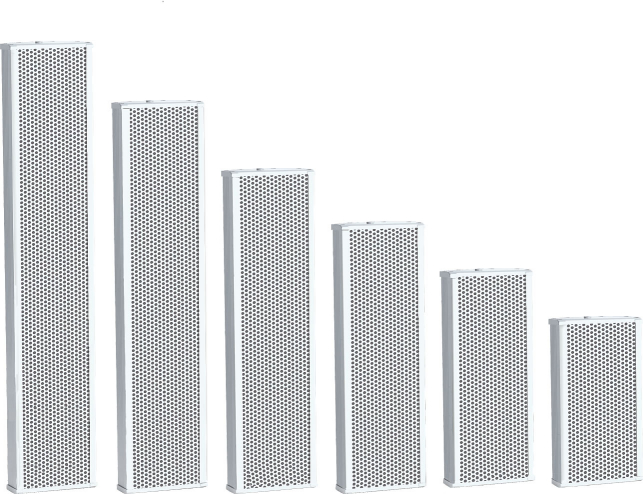

Premium Column Speaker Series

The COL series represents our top-tier line of column speakers, engineered to deliver exceptional audio performance across diverse environments. Each model features 1 to 6 built-in 6.5-inch speaker units, precisely calibrated to produce rich, balanced sound output.

Key Features

Durable Construction: Aluminum enclosures ensure lightweight yet sturdy protection with excellent heat dissipation
Consistent Performance: 100V voltage operation with power ranging from 10W to 60W
High Sensitivity: Up to 98DB with frequency response of 140-15KHZ for clear audio reproduction
Space-Efficient Design: Compact dimensions (227*125mm width/depth) with variable length based on speaker units
Versatile Applications: Ideal for public address systems in classrooms, conference halls, and commercial spaces

Technical Specifications

Model	Speaker Size	Power	Voltage	Sensitivity	Frequency Response	Dimension(mm)	Material	Weight(kgs)
COL-561	6.5" ×1	10W	100V	93DB	140-15KHZ	304227125	Aluminum	3.2
COL-562	6.5" ×2	20W	100V	94DB	140-15KHZ	520227125	Aluminum	5
COL-563	6.5" ×3	30W	100V	95DB	140-15KHZ	736227125	Aluminum	6.8
COL-564	6.5" ×4	40W	100V	96DB	140-15KHZ	952227125	Aluminum	8.6
COL-565	6.5" ×5	50W	100V	97DB	140-15KHZ	1168227125	Aluminum	10.5
COL-566	6.5" ×6	60W	100V	98DB	140-15KHZ	1384227125	Aluminum	12.5

100V OEM ODM Waterproof Sound Column Speaker 20W Aluminum Material
