240W FM Bluetooth 6 Zones Output Mixing Amplifier With Remote Control

Model Number:	PA-240ZM
MOQ:	100

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Warranty:

3years

Dimension:

485*340*88

Radio Function:

Operating Voltage:

70V/100V

Impedance:

4-16Ω

Frequency Response:

80-16KHZ+/_5dB

Recommended Use:

For Televisions, For DVD Players, For Music Players

Magnet Material:

Ferrite

Highlight:

FM Bluetooth Mixer Amplifier 240W

240W Mixing Amplifier

Mixing Amplifier With Remote Control

Product Description

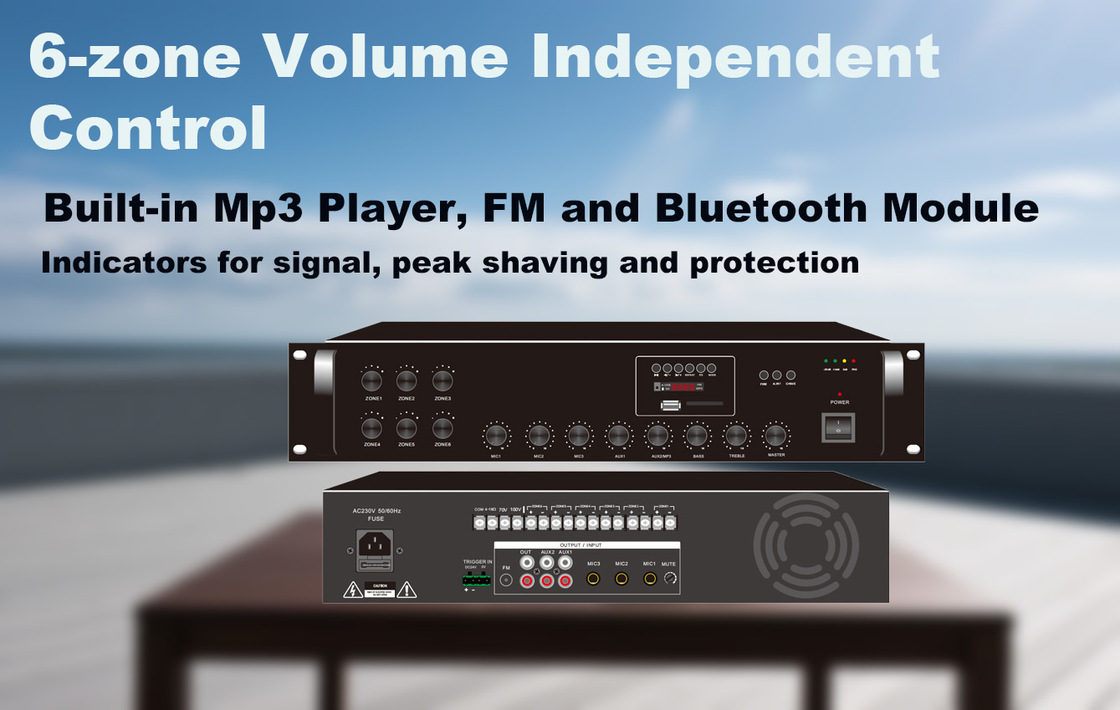

240W Professional Mixing Amplifier FM Bluetooth with Remote Control

Product Overview

The PA-60ZM-PA-1000ZM series professional mixing amplifiers feature 6 zones with MP3 and Bluetooth players, designed for versatile audio applications.

Key Features

Advanced power amplification circuit with 2 MIC inputs, 3 line inputs, and 1 AUX output
Flexible output options: 4-16Ω low impedance and 70V/100V high impedance
Individual volume control with adjustable treble and bass settings
Built-in MP3 player and FM radio operated by remote control
Bluetooth connectivity for wireless music streaming from mobile devices
Priority system: MIC1 and fire alarm inputs suppress other signals when activated
Comprehensive status indicators for signal, peak levels, and protection modes
Built-in limiter protects speakers from excessive signal levels
6-zone output with individual volume control for each zone
3-channel fire alarm function with automatic or manual activation
Supports multiple trigger voltages (0V, 3.3V, 5V, 12V, 24V) for alarm activation
Includes 8MB memory card for firmware updates and content storage

Technical Specifications

Model	PA-60ZM	PA-120ZM	PA-240ZM	PA-360ZM	PA-560ZM	PA-650ZM	PA-1000ZM
Rated Power	60W	120W	240W	360W	560W	650W	1000W
Input Voltage	AC220V/50HZ
AUX Sensitivity	-6DB	-6DB
MIC Sensitivity	-40DB	-40DB
Frequency Response	80HZ-16KHZ+/-3DB	80HZ-16KHZ+/-3DB
THD	≤0.1%	≤0.1%
SNR	≥70DB	≥70DB
Protection Circuit	DC, Overload, AC fuse, Short-circuit
Operating Temperature	-5℃ to +80℃
Operating Humidity	20% to 80% relative humidity

240W FM Bluetooth 6 Zones Output Mixing Amplifier With Remote Control 0

240W FM Bluetooth 6 Zones Output Mixing Amplifier With Remote Control 1

240W FM Bluetooth 6 Zones Output Mixing Amplifier With Remote Control 2

240W FM Bluetooth 6 Zones Output Mixing Amplifier With Remote Control 3

240W FM Bluetooth 6 Zones Output Mixing Amplifier With Remote Control 4

240W FM Bluetooth 6 Zones Output Mixing Amplifier With Remote Control 5

240W FM Bluetooth 6 Zones Output Mixing Amplifier With Remote Control 6
