Wall Speaker

Two Way Wall PA Speaker 20W 100V Individual Tweeter 4 Inch Woofer Loudspeaker

All Category

Security System

Ms. Miranda

sales01@vox-pa.com

13710661606

Contact Now

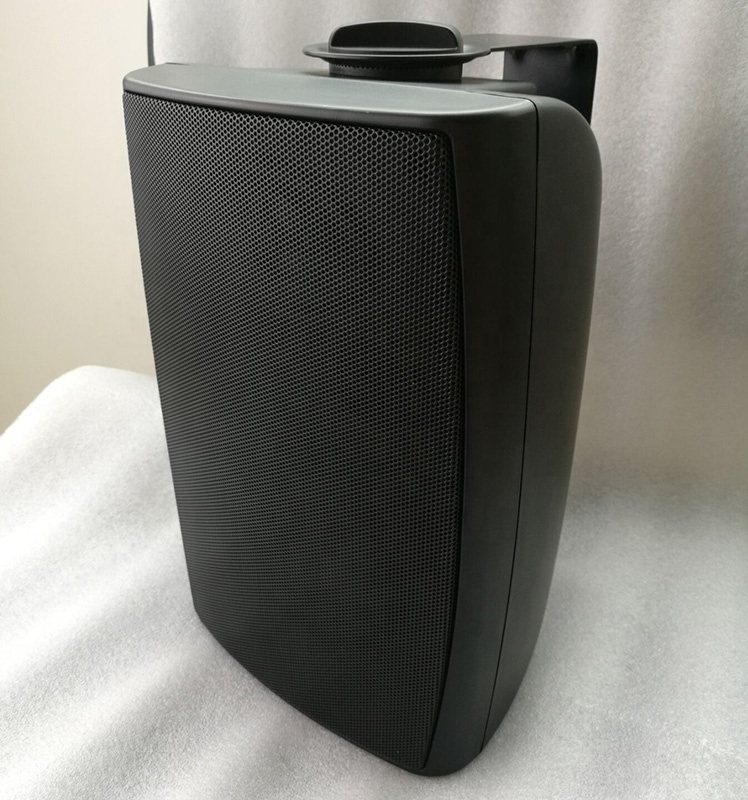

Two Way Wall PA Speaker 20W 100V Individual Tweeter 4 Inch Woofer Loudspeaker

Model Number:	WTT-04

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Warranty:

3years

Dimension:

220*150*135

Output Power:

Shell Material:

Frequency Response:

90-20KHZ

Magnet Material:

Ferrite, Neodymium

Voltage:

Highlight:

Two Way Wall PA Speaker

Wall PA Speaker 20W

4 Inch Woofer Speaker

Product Description

20W Individual Tweeter and 4 Inch Woofer Wall Speaker Two Way Wall PA System Speaker

WTT-04 20W Individual Tweeter and 4 Inch Woofer Wall Speaker Two Way Wall PA System Speaker

Product Overview

The WT series features two-way wall mount speakers with a 1" tweeter and 4"/5"/6"/8" woofer, delivering stereo sound with clear treble and bass. Built with a 70V/100V transformer to reduce line losses over long distances and enable easy parallel connection of multiple speakers.

Key Features

Mounting & Build: Wall-mounted design with metal grille and durable ABS enclosure, available in black and white
Size Options: Available with 4", 5", 6", or 8" woofers to suit various installation spaces
Audio Performance: Two-way setup delivers clear stereo sound with distinct treble and bass
Power Efficiency: Built-in 70V/100V transformer reduces long-distance line losses
Versatile Application: Ideal for background music and paging in hotels, schools, offices, and factories

Technical Specifications

Model	Speaker Size	Power	Voltage	Sensitivity	Frequency Response	Dimension(mm)	Material
WTL-04	1" tweeter, 4" woofer	20W/40W	8Ω	87DB	90-20KHz	220150135	ABS
WTT-04	1" tweeter, 4" woofer	20W	100V	88DB	90-20KHz	220150135	ABS
WTS-04	1" tweeter, 4" woofer	2.5/5/10/20/8Ω	100V/70V	88DB	90-20KHz	220150135	ABS
WTL-05	1" tweeter, 5" woofer	30W/60W	8Ω	88DB	90-20KHz	255178155	ABS
WTT-05	1" tweeter, 5" woofer	30W	100V	89DB	90-20KHz	255178155	ABS
WTS-05	1" tweeter, 5" woofer	3.75/7.5/15/30W/8Ω	70V/100V	89DB	90-20KHz	255178155	ABS
WTL-06	1" tweeter, 6" woofer	40W/80W	8Ω	87DB	90-20KHz	310213195	ABS
WTT-06	1" tweeter, 6" woofer	40W	100V	89DB	90-20KHz	310213195	ABS
WTS-06	1" tweeter, 6" woofer	5/10/20/40/8Ω	70V/100V	89DB	90-20KHz	310213195	ABS
WTL-08	1" tweeter, 8" woofer	60W/120W	8Ω	88DB	90-20KHz	417289255	ABS
WTT-08	1" tweeter, 8" woofer	60W	100V	88DB	90-20KHz	417289255	ABS
WTS-08	1" tweeter, 8" woofer	7.5/15/30/60W/8Ω	70V/100V	88DB	90-20KHz	417289255	ABS

Two Way Wall PA Speaker 20W 100V Individual Tweeter 4 Inch Woofer Loudspeaker 0

Two Way Wall PA Speaker 20W 100V Individual Tweeter 4 Inch Woofer Loudspeaker 1

Two Way Wall PA Speaker 20W 100V Individual Tweeter 4 Inch Woofer Loudspeaker 2

Two Way Wall PA Speaker 20W 100V Individual Tweeter 4 Inch Woofer Loudspeaker 3

Two Way Wall PA Speaker 20W 100V Individual Tweeter 4 Inch Woofer Loudspeaker 4

Two Way Wall PA Speaker 20W 100V Individual Tweeter 4 Inch Woofer Loudspeaker 5
