Mixing Amplifier

Desktop Digital Mixing Amplifier 60W with Bluetooth MP3 FM OEM ODM

All Category

Security System

Ms. Miranda

sales01@vox-pa.com

13710661606

Contact Now

Desktop Digital Mixing Amplifier 60W with Bluetooth MP3 FM OEM ODM

Model Number:	PD-60M

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Warranty:

3years

Dimension:

215*220*44

Output Power:

Frequency Response:

80HZ-16KHZ+/-1DB

Recommended Use:

For Televisions, For DVD Players, For Gaming Consoles, For Computers, For Music Players, For Surround Sound Systems

Highlight:

Desktop Mixing Amplifier 60W

Mixing Amplifier 60W Digital

60W Digital Speaker Mixer Amplifier

Product Description

Small Size Application Mixing Amplifier 60W Digital with a Screen

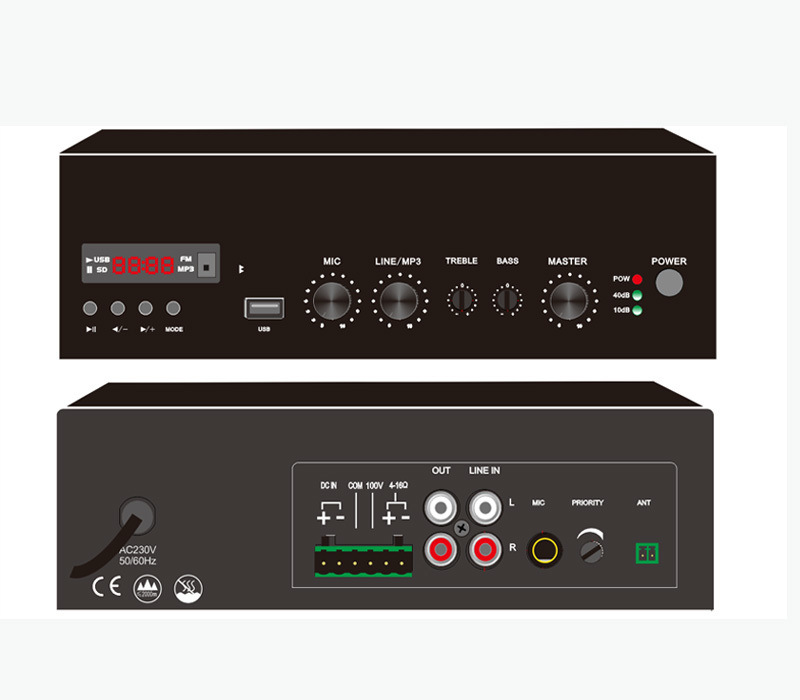

PD-60M Small Size Desktop Application Digital Mixing Amplifier 60W

Product Overview

The PD-60M is a compact yet powerful digital mixing amplifier designed for professional audio applications. Operating at AC220V/50Hz with 60W rated power, it features 1 MIC input, 1 AUX input, and versatile 4-8Ω & 100V outputs. With built-in MP3 player and Bluetooth connectivity, FM, SD card, it delivers excellent audio performance with -6DB AUX and -40DB MIC sensitivity, 80Hz-16KHz frequency response, and compact dimensions for flexible installation.

Key Features

Class D circuit design with high-efficiency switch mode power supply
1 MIC input, 1 AUX input, and 1 AUX output for versatile connectivity
Dual output options: 4-8Ω low impedance and 100V line output
15-24V DC power supply capability
Built-in MP3 player and Bluetooth for wireless audio streaming; FM; SD card
MIC 1 priority control automatically suppresses other input signals
Compact table-top design with space-saving dimensions

Technical Specifications

Model	PD-60M
Input Voltage	AC220V/50HZ
Rated Power	60W
AUX Sensitivity	-6DB
MIC Sensitivity	-40DB
Frequency Response	80HZ-16KHZ+/-1DB
THD	THD≤0.1%
SNR	≥78DB
Line Output	4-8Ω 100V
Tone Control	Bass: ±10DB(@100HZ) Treble: ±10DB(@10KHZ)
Operating Temperature	-5℃-80℃
Operating Humidity	20%-80%
Dimensions (mm)	215×220×44

Desktop Digital Mixing Amplifier 60W with Bluetooth MP3 FM OEM ODM 0

Desktop Digital Mixing Amplifier 60W with Bluetooth MP3 FM OEM ODM 1

Desktop Digital Mixing Amplifier 60W with Bluetooth MP3 FM OEM ODM 2

Desktop Digital Mixing Amplifier 60W with Bluetooth MP3 FM OEM ODM 3

Desktop Digital Mixing Amplifier 60W with Bluetooth MP3 FM OEM ODM 4

Desktop Digital Mixing Amplifier 60W with Bluetooth MP3 FM OEM ODM 5
