OEM ODM Bluetooth MP3 40W Mixing Amplifier Small Table 1U Metal Material

Model Number:	PD-40M
MOQ:	100

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Warranty:

3years

Dimension:

215*220*44

Output Power:

Frequency Response:

80HZ-16KHZ+/-1DB

Recommended Use:

For Televisions, For DVD Players, For Gaming Consoles, For Computers, For Music Players, For Surround Sound Systems

Highlight:

40W Digital Mixing Amplifier

Digital Mixing Amplifier Small

Table Top Mic Mixer Amplifier

Product Description

Professional 40W/60W/80W/120W Digital Mixing Amplifier

Compact Table Top Application Mixing Amplifier

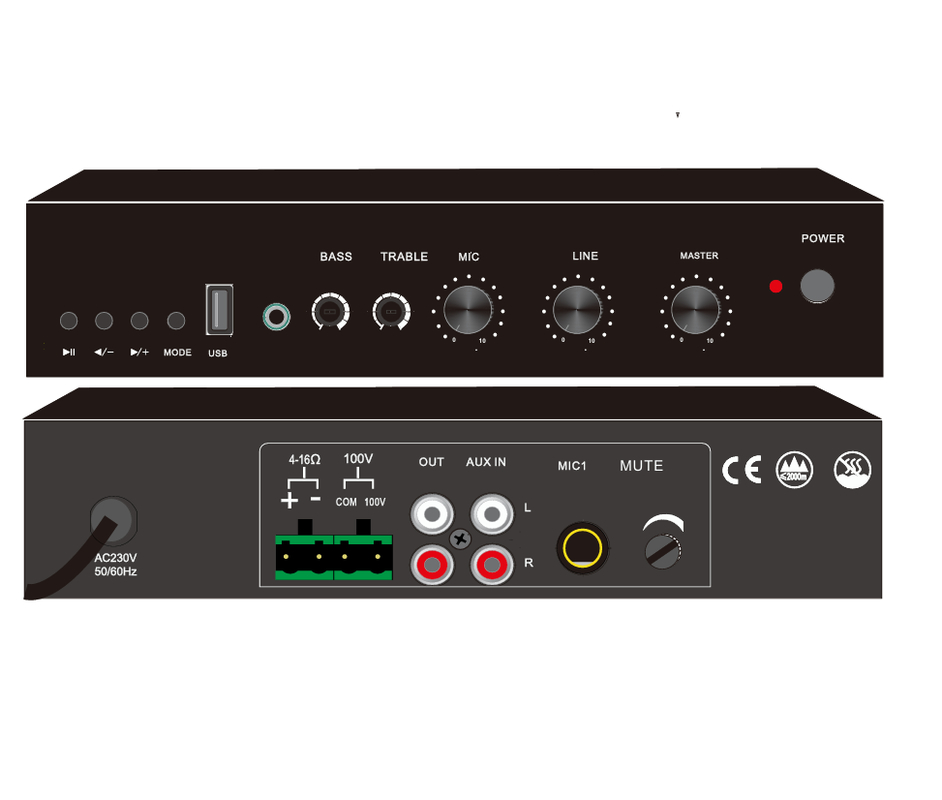

PD-40M Professional 40W Digital Mixing Amplifier Small Size Table Top Application Mixing Amplifier

Product Overview

The PD-40M is a compact yet powerful digital mixing amplifier designed for versatile audio applications. Operating at AC220V/50Hz with 40W rated power, it features 1 MIC input, 1 AUX input, and supports both 4-8Ω & 100V outputs. With built-in MP3 player and Bluetooth connectivity, it offers flexible audio solutions for various environments.

Key Features

Class D circuit with high-efficiency switch mode power supply
1 MIC input, 1 AUX input, and 1 AUX output for flexible connectivity
Supports both 4-8Ω low impedance and 100V output options
15-24V DC power supply capability
Built-in MP3 player and Bluetooth for versatile audio playback
MIC 1 features priority control, automatically suppressing other inputs
Compact table-top design with space-saving dimensions

Technical Specifications

Model	PD-40M
Input Voltage	AC220V/50HZ
Rated Power	40W
AUX Sensitivity	-6DB
MIC Sensitivity	-40DB
Frequency Response	80Hz-16KHz+/-1DB
THD	THD≤0.1%
SNR	≥78DB
Line Output	4-8Ω 100V
Tone Control	Bass: +/-10DB(@100HZ) Treble: +/-10DB(@10KHZ)
Operating Temperature	-5℃-80℃
Operating Humidity	20℃-80℃
Dimensions(mm)	21522044

OEM ODM Bluetooth MP3 40W Mixing Amplifier Small Table 1U Metal Material
