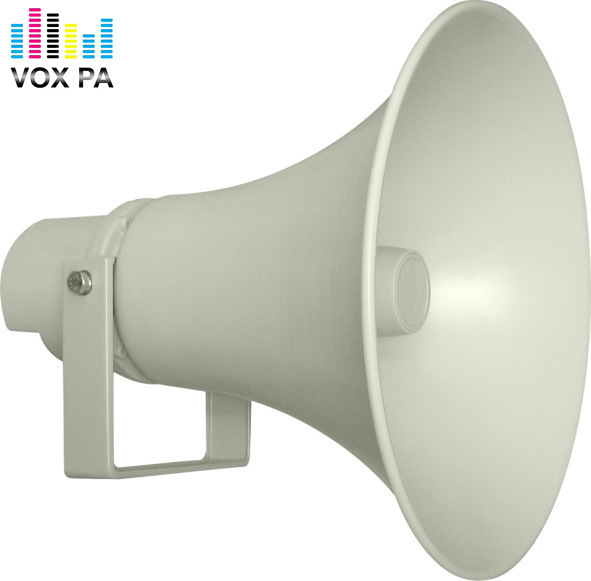

Waterproof 50w IP Horn Speaker with Digital Power Amplifier Aluminum Enclosure

Model Number: IP-0050
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE，ISO
Warranty:
3years
Dimension:
325*350
Snr:
>/=65DB
Frequency Response:
380HZ-6KHZ+1DB/-3DB
Power:
50w
Network Protocol:
Rj45
Highlight:

IP65 Outdoor Horn Speaker

,

Outdoor Horn Speaker 65DB

,

380HZ Horn Speaker

Product Description
IP65 Waterproof Outdoor Smart Horn Speaker with Digital Power Amplifier

IP65 Waterproof Outdoor Smart Horn Speaker with Digital Power Amplifier and Horn Speaker


This high-performance IP horn speaker combines network audio decoding, digital power amplification, and horn speaker in one integrated unit. Featuring an industrial-grade dual-core chip for fast startup (≤1s), 80W power output, IP65 waterproof rating, and remote upgrade capability, it delivers exceptional sound quality and reliable operation in diverse environments.
Key Features
  • Integrated design combining network audio decoding, digital power amplifier and horn speaker
  • High-speed industrial-grade dual-core (ARM+DSP) chip with ≤1s startup time
  • Supports ≥48kHz sampling rate 16bit, 8~320Kbps digital audio stream decoding
  • Built-in Class D digital power amplifier with CD-quality sound output (80W power)
  • Professional aluminum enclosure with all-weather IP65 waterproof design
  • Monitor-grade speaker unit for accurate vocal and music reproduction
  • Remote volume adjustment and 5-band equalization via service software
  • Waterproof status indicator shows terminal online status
  • Standard RJ45 network interface with cross-network segment/routing support
  • DC power supply with LAN/WAN upgrade capability for easy maintenance
Technical Specifications
Model IP-0050
Network Interface RJ45
Power Consumption ≤50W
Network Protocol TCP/IP, UDP, IGMP
Audio Format MP3/MP2
Sampling Rate 8K-48KHz
Transfer Rate 100Mbps
Audio Mode 16bit Stereo CD Quality
Speaker Impedance and Power 50W
MIC Input Sensitivity 5mV (Unbalanced)
Frequency Response 380Hz-6KHz +1dB/-3dB
THD THD≤1%
SNR Ratio ≥65DB
Operation Temperature 5℃-40℃
Operation Humidity 20℃-80℃
AUX Input Sensitivity 350mV push terminal
Dimensions (mm) 325×350

Waterproof 50w IP Horn Speaker with Digital Power Amplifier Aluminum Enclosure 0

Waterproof 50w IP Horn Speaker with Digital Power Amplifier Aluminum Enclosure 1

Waterproof 50w IP Horn Speaker with Digital Power Amplifier Aluminum Enclosure 2

Waterproof 50w IP Horn Speaker with Digital Power Amplifier Aluminum Enclosure 3

Waterproof 50w IP Horn Speaker with Digital Power Amplifier Aluminum Enclosure 4

Waterproof 50w IP Horn Speaker with Digital Power Amplifier Aluminum Enclosure 5

Waterproof 50w IP Horn Speaker with Digital Power Amplifier Aluminum Enclosure 6

Waterproof 50w IP Horn Speaker with Digital Power Amplifier Aluminum Enclosure 7
