Rectangle 1500W Class D Audio Power Amplifier OEM ODM Power Supply Metal Material
All Category

Ceiling Speaker

Commercial Audio

Column Speaker

Wall Speaker

Horn Speaker

Hanging Speaker

Projector Speaker

Garden Speaker

Active Speaker

Volume Controller

Mixing Amplifier

Power Amplifier

IP Network PA System

SIP PA System

Security System
Contact Us
Ms. Miranda
sales01@vox-pa.com
13710661606
WeChat
Contact Now
Rectangle 1500W Class D Audio Power Amplifier OEM ODM Power Supply Metal Material
  • Name
  • Name
  • Name
  • Name

Rectangle 1500W Class D Audio Power Amplifier OEM ODM Power Supply Metal Material

Model Number: PA-1500A
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Warranty:
3years
Dimension:
485*400*88
Snr:
>/=80DB
Output Power:
1500W
Shape:
Rectangle
Frequency Response:
80-16KHZ+/_5dB
Recommended Use:
For Televisions, For DVD Players, For Gaming Consoles, For Computers, For Music Players, For Surround Sound Systems
Highlight:

1500W Class D power amplifier

,

Rectangle audio power amplifier

,

ODM power supply amplifier

Product Description
High Quality Power Amplifier 1500W Advanced and Efficient Power Amplification Circuit Power Amplifier

Product Overview

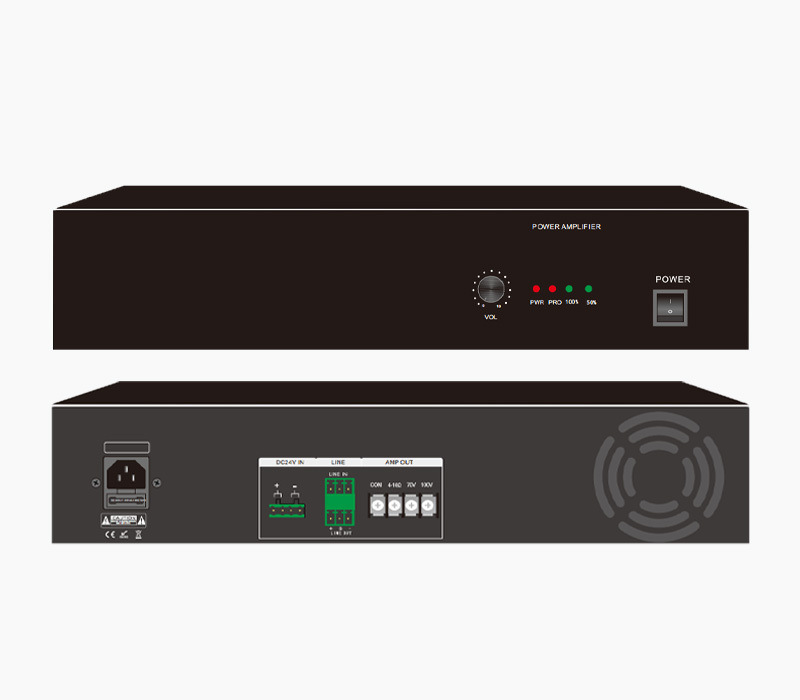

The PA-1500A is an advanced audio power amplifier featuring efficient power amplification circuitry. Operating on AC220V/50Hz, this 1500W rated power amplifier supports

both 4-16Ω low-impedance and 70V/100V outputs, complete with volume control and comprehensive protection indicators.

Key Features
  • Advanced power amplification circuit with 1 balanced input, 1 unbalanced input, and 1 unbalanced output
  • Dual output options: 4-16Ω low impedance and 70V/100V outputs
  • Integrated volume control for precise audio adjustment
  • Comprehensive status indicators for signal, peak value, overload, overheating, and short circuit conditions
Technical Specifications
Model PA-060A PA-120A PA-240A PA-360A PA-500A PA-650A PA-800A PA-1000A PA-1500A PA-2000A
Input Voltage AC220V/50HZ
Rated Power 60W 120W 240W 360W 500W 650W 800W 1000W 1500W 2000W
AUX Sensitivity 0DB
Protection Circuit DC, Overload, AC fuse, Short-circuit
Frequency Response 80HZ-20KHZ+/-1DB
THD THD≤0.1%
SNR ≥80DB
Line Output 0DB
Operating Temperature -5℃-80℃
Operating Humidity 20℃-80℃ relative humidity
Dimensions 485*400*88

Rectangle 1500W Class D Audio Power Amplifier OEM ODM Power Supply Metal Material 0

Rectangle 1500W Class D Audio Power Amplifier OEM ODM Power Supply Metal Material 1

Rectangle 1500W Class D Audio Power Amplifier OEM ODM Power Supply Metal Material 2

Rectangle 1500W Class D Audio Power Amplifier OEM ODM Power Supply Metal Material 3

Rectangle 1500W Class D Audio Power Amplifier OEM ODM Power Supply Metal Material 4

Rectangle 1500W Class D Audio Power Amplifier OEM ODM Power Supply Metal Material 5

Rectangle 1500W Class D Audio Power Amplifier OEM ODM Power Supply Metal Material 6

Rectangle 1500W Class D Audio Power Amplifier OEM ODM Power Supply Metal Material 7
