OEM ODM Coaxial Ceiling Speaker 4 Inch ABS Sound PA System Loudspeaker

Model Number:	CL-714V
MOQ:	100

Detail Information

Product Description

Detail Information

Place of Origin:

China

Warranty:

3years

Dimension:

180*80

Power Source:

Other

Output Power:

Shell Material:

The Body Material:

Plastic

Frequency Response:

100-20KHZ

Magnet Material:

Ferrite

Highlight:

OEM ODM Coaxial Ceiling Speaker

Coaxial Ceiling Speaker 4 Inch

ABS Sound PA System Loudspeaker

Product Description

CL-714V OEM ODM Flameless Metal Grille Design Two Way 4 Inch Ceiling Coaxial Speaker

CL-714V OEM ODM Two Way 4 Inch Coaxial Ceiling Speaker ABS Sound PA System Loudspeaker

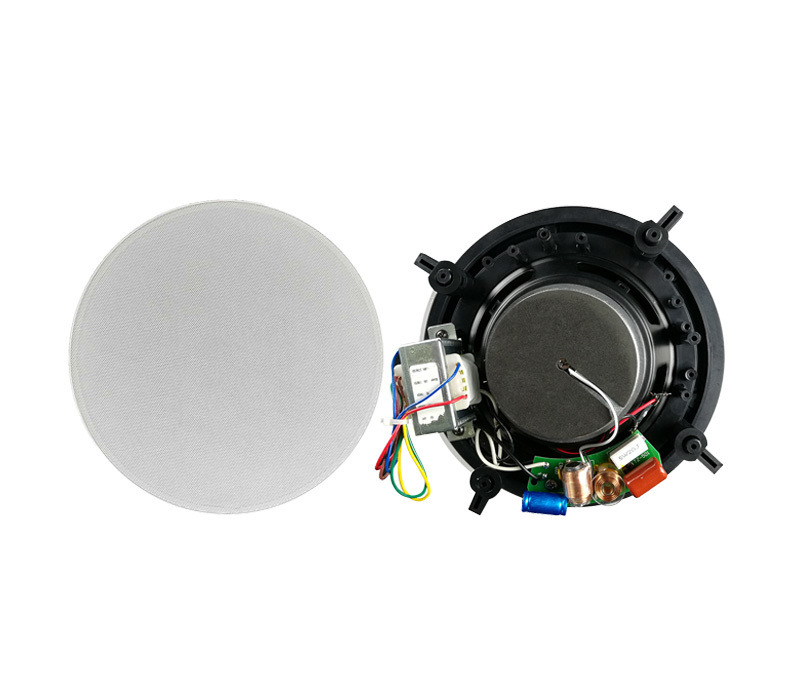

Product Overview

The CL-714V is a 2-way ceiling speaker engineered for commercial applications. Ideal for hotels, coffee shops, and bars, it delivers high-quality audio to enhance ambiance and music playback in public spaces.

Design & Installation

Aesthetic Design: Features a stylish flameless grille and white-coated ABS baffle for a minimalist look that blends with interior decor
Easy Installation: Spring clamp mounting system enables quick, secure ceiling integration without complex tools

Audio Performance

4-inch Speaker Unit: Delivers balanced sound across frequencies for background music or announcements
20W Power (8ohm voltage): With 88dB sensitivity for efficient signal conversion and consistent volume
100-20KHZ Frequency Range: Reproduces rich bass and crisp highs for full-spectrum sound

Physical Specifications

Dimensions: 180×80mm (product size) with 160mm mounting hole for standard ceiling cutouts
Weight: 1kg - lightweight yet durable ABS construction for commercial environments

Model Comparison

Model	Speaker Size	Power	Voltage	Sensitivity	Frequency Response	Dimension	Material
CL-714V	4"	20W	100V	88DB	100-20KHZ	180*80	ABS
CL-715V	5"	20W	100V	88DB	100-20KHZ	203*852	ABS
CL-716V	6"	30W	100V	88DB	70-20KHZ	232*90	ABS
CL-718V	8"	40W	100V	90DB	50-20KHZ	281*110	ABS
