| Model Number: | CL-716v |
| MOQ: | 50 |

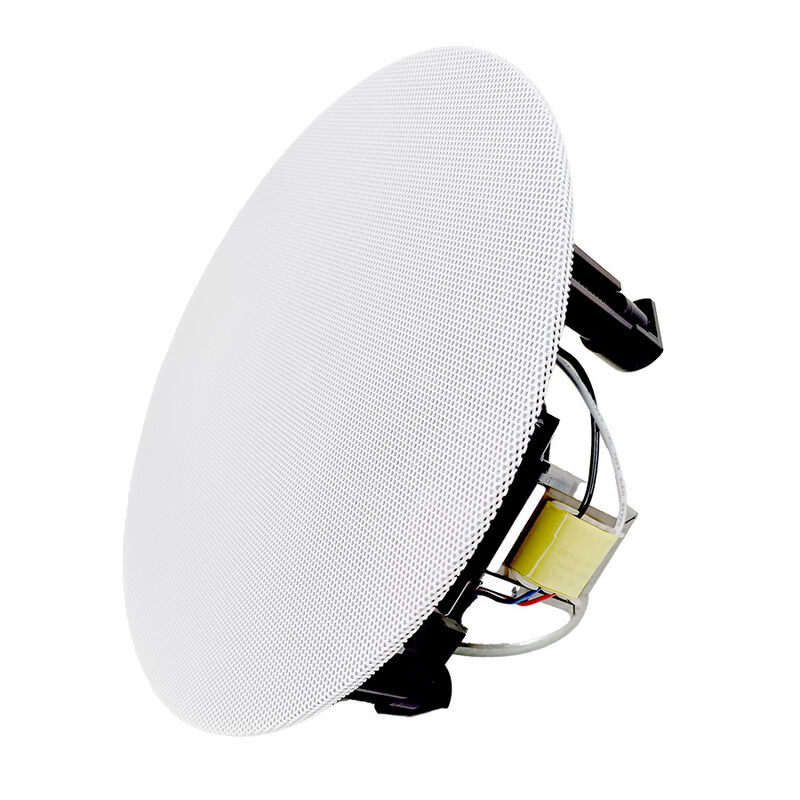

This frameless coaxial passive ceiling speaker is engineered for long-term commercial audio applications, featuring an innovative magnetic removable border and reliable screw lock clamp mounting structure, balancing sleek aesthetics, premium sound performance and hassle-free installation.
Crafted with a borderless minimalist design, the speaker abandons traditional bulky plastic trims and adopts a magnetic absorption frame. The rim can be effortlessly attached or detached without extra tools, delivering a seamless, flush ceiling finish that perfectly matches modern interior decoration styles for hotels, shopping malls, offices, restaurants, lobbies and other public venues. The magnetic border avoids visible gaps after installation, greatly upgrading the overall interior visual effect and meeting high-standard commercial decoration demands.
Equipped with a professional coaxial sound driver unit, this passive ceiling loudspeaker separates high-frequency treble and mid-low frequency bass output independently. It delivers balanced, clear and full-range audio with rich detail, eliminating sound distortion even under long-hour continuous playback. The outstanding sound quality ensures uniform sound coverage across open commercial spaces, ideal for background music, public paging and daily broadcast playback.
Its core practical highlight lies in the sturdy screw lock clamp mounting system. Four adjustable torsion screw clamps are pre-installed on the speaker housing. After cutting a standard round opening on the ceiling panel, simply place the speaker into the hole and twist the built-in locking screws; the metal clamps will expand outward to tightly grip gypsum boards, wood ceilings and other common ceiling materials. This fixing method offers stable load-bearing capacity, effectively preventing sagging or falling after years of use, far more durable than simple spring clip structures. The adjustable design adapts to different ceiling thicknesses, supporting fast one-person installation and reducing on-site construction time and labor costs for engineering projects.
As a passive audio device, this coaxial ceiling speaker matches perfectly with standard commercial 100V/70V constant voltage power amplifiers, compatible with all mainstream public broadcast systems. Built with durable anti-corrosion metal chassis and fire-resistant internal components, it supports all-day non-stop operation in various indoor commercial environments. Combining elegant frameless magnetic appearance, hi-fi coaxial audio and robust screw lock clamp installation, this ceiling speaker is the all-round cost-effective audio solution for global commercial engineering projects.
The CL-716 excels in various commercial applications:
| Model | Speaker Size | Power | Voltage | Sensitivity | Frequency Response | Dimension(mm) | Material | Mounting Hole |
|---|---|---|---|---|---|---|---|---|
| CL-714V | 4" | 20W/10W/5W | 100V | 88DB | 100-20KHZ | 180×80 | ABS | 160 |
| CL-715V | 5" | 20W/10W/5W | 100V | 88DB | 100-20KHZ | 203×852 | ABS | 180 |
| CL-716V | 6" | 30W/15W/7.5W | 100V | 89DB | 100-20KHZ | 232×90 | ABS | 200 |
| CL-718V | 8" | 40W/20W/10W | 100V | 90DB | 50-20KHZ | 281×110 | ABS | 250 |
![]()
![]()
![]()
![]()
![]()
![]()
