80W OEM ODM Mixing Amplifier Desktop Built-in MP3 Player Bluetooth FM

Model Number:	PD-80M
MOQ:	100

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Warranty:

3years

Dimension:

215*220*44

Output Power:

Frequency Response:

80HZ-16KHZ+/-1DB

Recommended Use:

For Televisions, For DVD Players, For Gaming Consoles, For Computers, For Music Players, For Surround Sound Systems

Highlight:

80W digital mixing amplifier with Bluetooth

desktop mixing amplifier with MP3 player

FM mixing amplifier with built-in player

Product Description

Professional 80W Digital Mixing Amplifier MP3 Bluetooth FM

Compact Table Top Application Mixing Amplifier

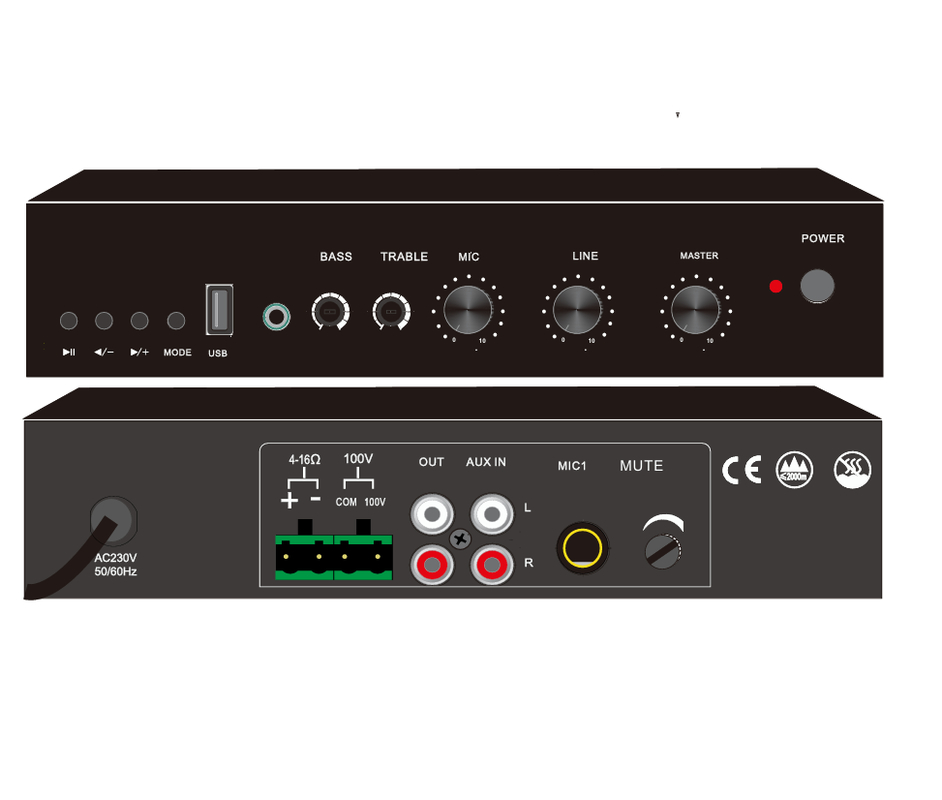

PD-80M Professional 80W Digital Mixing Amplifier Small Size Table Top Application Mixing Amplifier

Product Overview

The PD-80M is a compact yet powerful digital mixing amplifier designed for versatile audio applications. Operating at AC220V/50Hz with 80W rated power, it features 1 MIC input, 1 AUX input, and supports both 4-8Ω & 100V outputs. With built-in MP3 player and Bluetooth connectivity, it offers flexible audio solutions for various environments.

Key Features

Class D circuit with high-efficiency switch mode power supply
1 MIC input, 1 AUX input, and 1 AUX output for flexible connectivity
Supports both 4-8Ω low impedance and 100V output options
15-24V DC power supply capability
Built-in MP3 player and Bluetooth for versatile audio playback
MIC 1 features priority control, automatically suppressing other inputs
Compact table-top design with space-saving dimensions

Technical Specifications

Model	PD-40M	PD-60M	PD-80M	PD-120M
Input Voltage	AC220V/50HZ	Rated Power	Input Voltage	Sensitivity
Rated Power	40W	60W	80W	120W
AUX Sensitivity	-6DB
MIC Sensitivity	-40DB
Frequency Response	80Hz-16KHz+/-1DB
THD	THD≤0.1%
SNR	≥78DB
Line Output	4-8Ω 100V
Tone Control	Bass: +/-10DB(@100HZ) Treble: +/-10DB(@10KHZ)
Operating Temperature	-5℃-80℃
Operating Humidity	20℃-80℃
Dimensions(mm)	21522044			21522044

80W OEM ODM Mixing Amplifier Desktop Built-in MP3 Player Bluetooth FM 0

80W OEM ODM Mixing Amplifier Desktop Built-in MP3 Player Bluetooth FM 1

80W OEM ODM Mixing Amplifier Desktop Built-in MP3 Player Bluetooth FM 2

80W OEM ODM Mixing Amplifier Desktop Built-in MP3 Player Bluetooth FM 3

80W OEM ODM Mixing Amplifier Desktop Built-in MP3 Player Bluetooth FM 4
